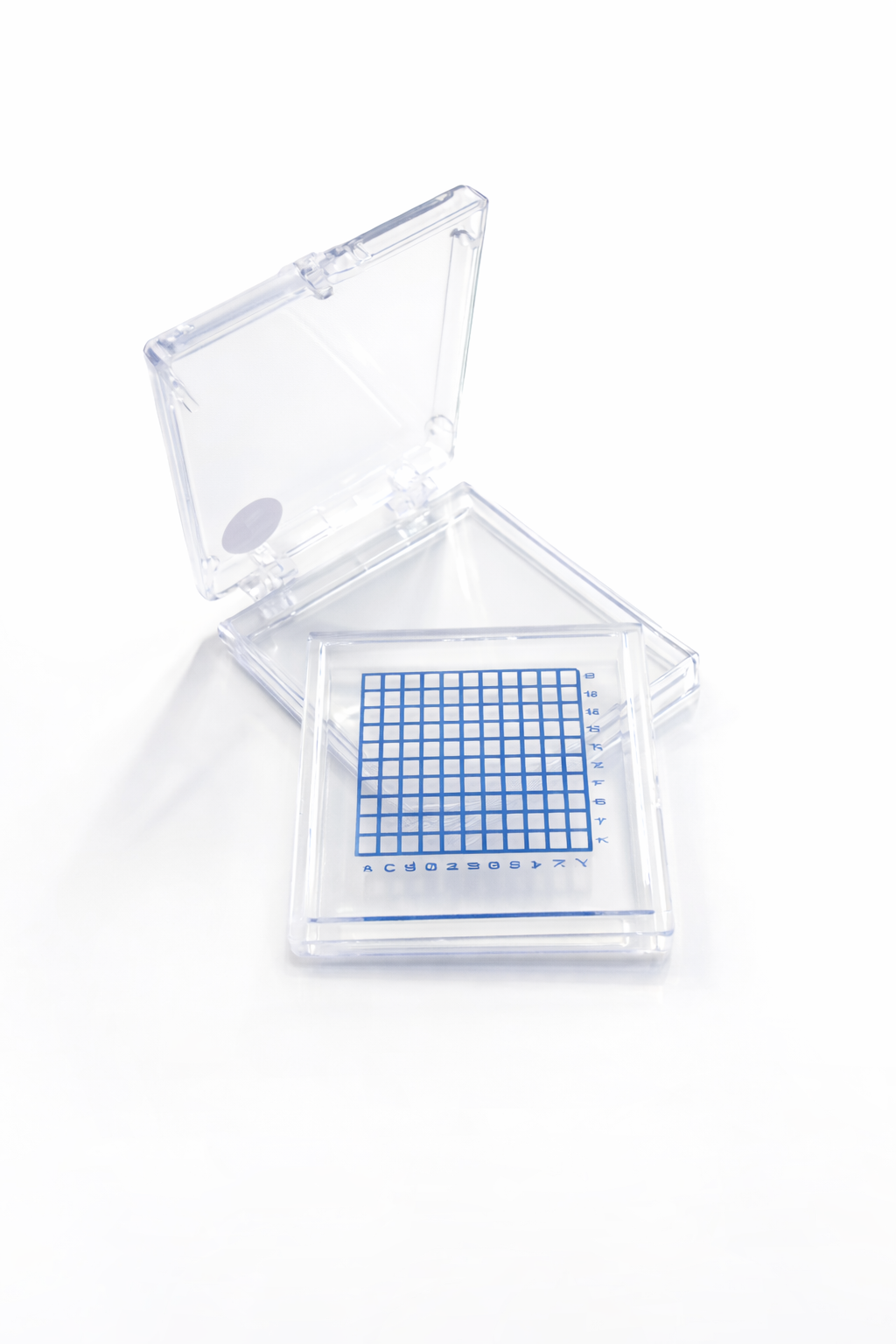

Gel Pak Trays

Secure, Non-Adhesive Handling for Fragile Components

CCD Enterprise supplies Gel-Pak Trays designed for the safe handling, storage, and transport of ultra-fragile components such as bare dies, optoelectronic devices, laser diodes, and MEMS. Each tray features a proprietary gel or elastomer surface that immobilizes components on contact?without adhesives, static, or mechanical clamping?preserving device integrity throughout critical processes.

These trays are ideal for cleanroom environments and precision operations where contamination control and zero component movement are essential.

Key Features:

Available in a range of standard tray sizes and gel tack levels (low, medium, high)

Immobilizes devices without adhesives or static

Reusable, non-contaminating elastomer surface

Transparent lid for easy visual inspection

Suitable for automated pick-and-place or manual handling

Cleanroom-compatible and low-outgassing materials

Custom cavity layouts and tray configurations available

Applications:

Handling and transfer of bare dies, VCSELs, LEDs, MEMS, and optical chips

Secure temporary holding during inspection or testing

High-purity transport between fab, lab, and packaging stages

R&D, failure analysis, and engineering sample shipments
